JQ25 Air Diaphragm Pump

  • JQ25
  • LIGAO
Quantity:

Product Description

6

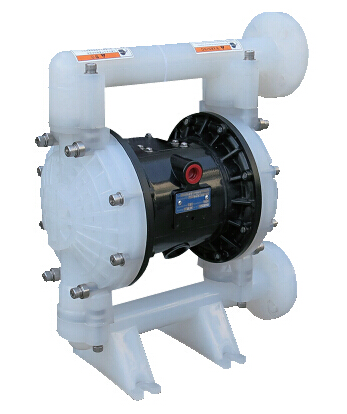

25

Wetted Parts Material: PP/PVDF/Aluminum/Stainless Steel

Features:
1 in (25.4 mm) end-porting
• High flow – 40 gpm (151 lpm) in a compact, portable size
• Fluid pressure to 120 psi (8.4 bar, 0.84 MPa)
• Epoxy-coated center section
• External controller for optional remote operation


Applications:
• Machine lubrication servicing
• Drum evacuation
• Plating and dip tanks
• Water treatment


Typical Fluids Handled:
• Chemicals
• Acetic acid
• Chromic acid
• Hydrochloric acid
• Hydrofluoric acid
• Sulfuric acid
• Nitric acid
• Phosphoric acid


Technical Specifications:

Max Working Pressure 120psi(0.84Mpa ,8.4bar)
Max Flow Rate 40 gpm(150 lpm)
Max Reciprocating Speed 276cpm
Max Suction Height (Dry Sucking) 5.48m
Max Permitted Grain 4mm
Max.Air Consumption 45scfm(22.5L/s)
Air Inlet size 1/2 in.npt(f)
Air Outlet size 1/2 in.npt(f)
Fluid Inlet size 1 in.npt(f)
Fluid Outlet size 1 in.npt(f)
Weight

PVDF Pump 10.0kg/PP pump 8.0kg

Aluminum pump 8.2kg; Stainless Steel 15kg
