2JX
LIGAO
4-450 L/H
5-400 Bars
Availability: | |
---|---|
Quantity: | |
Product Description

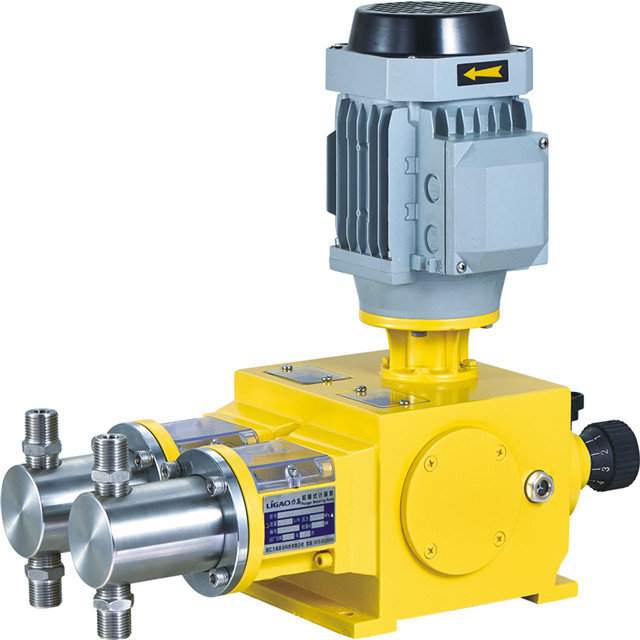

2JX is plunger /piston metering pump with duplex heads. Two liquid heads work separately with independent gear ratio mechanism. It is an ideal proportioning metering dosing pump for two different chemicals. The check valve is double-ball design for increased accuracy.
Features:
Flow rate can be adjusted via unique adjusting mechanism from 0-100%;
The adjustment can be carried when pump is in operation or at stop;
The steady accuracy is ±1% from 30%-100% of the maximum output;
Automatic operation is achieved by variable speed drive;
Special application for high temperature or low temperature is available with cooling jacket or heating jacket;
Materials:
Pump head: SS304,SS316;
Pump case: Cast Iron;
Plunger: Ceramic or SS316 coated with ceramic;
Packing seal: PTFE and SS316 Ring;
Valves: SS304,SS316;
Valve Ball: SS304,SS316, Ceramic;
Power Supply:
Power: 0.37kw IEC71 4 pole Motor
380V 3 phase on standard, single phase or other voltage on request; EX-proof motor is available on request.
Parameter:
Model | 50Hz | 60Hz | Pressure(MPa) | Piston Size | Stroke length (mm) | Motor Power (KW) | Connection | ||
Flow Rate (L/H) | Pump Speed (SPM) | Flow Rate (L/H) | Pump Speed (SPM) | Dia (mm) | |||||
2JX4/40 | 4 | 96 | 4.8 | 115 | 40 | 6 | 20 | 0.37 | DN6 union for welding |
2JX8/26 | 8 | 9.6 | 26 | 8 | |||||
2JX16/14 | 16 | 19 | 14 | 10 | |||||
2JX22/10 | 22 | 26 | 10 | 12 | |||||
2JX40/5.4 | 40 | 48 | 5.4 | 16 | DN10 union for welding | ||||
2JX60/3.5 | 60 | 72 | 3.5 | 20 | |||||
2JX100/2.2 | 100 | 120 | 2.2 | 25 | |||||
2JX130/1.7 | 130 | 156 | 1.7 | 28 | |||||
2JX170/1.3 | 170 | 204 | 1.3 | 32 | |||||
2JX200/1.0 | 200 | 240 | 1.0 | 35 | |||||
2JX250/0.8 | 250 | 300 | 0.8 | 38 | DN15 union for welding | ||||
2JX300/0.6 | 300 | 360 | 0.6 | 42 | |||||
2JX380/0.6 | 380 | 144 | 456 | 172 | 0.6 | 38 | |||
2JX450/0.5 | 450 | 540 | 0.5 | 42 |
