JQ40 Air Diaphragm Pump

  • JQ40
  • LIGAO
Quantity:

Product Description

6

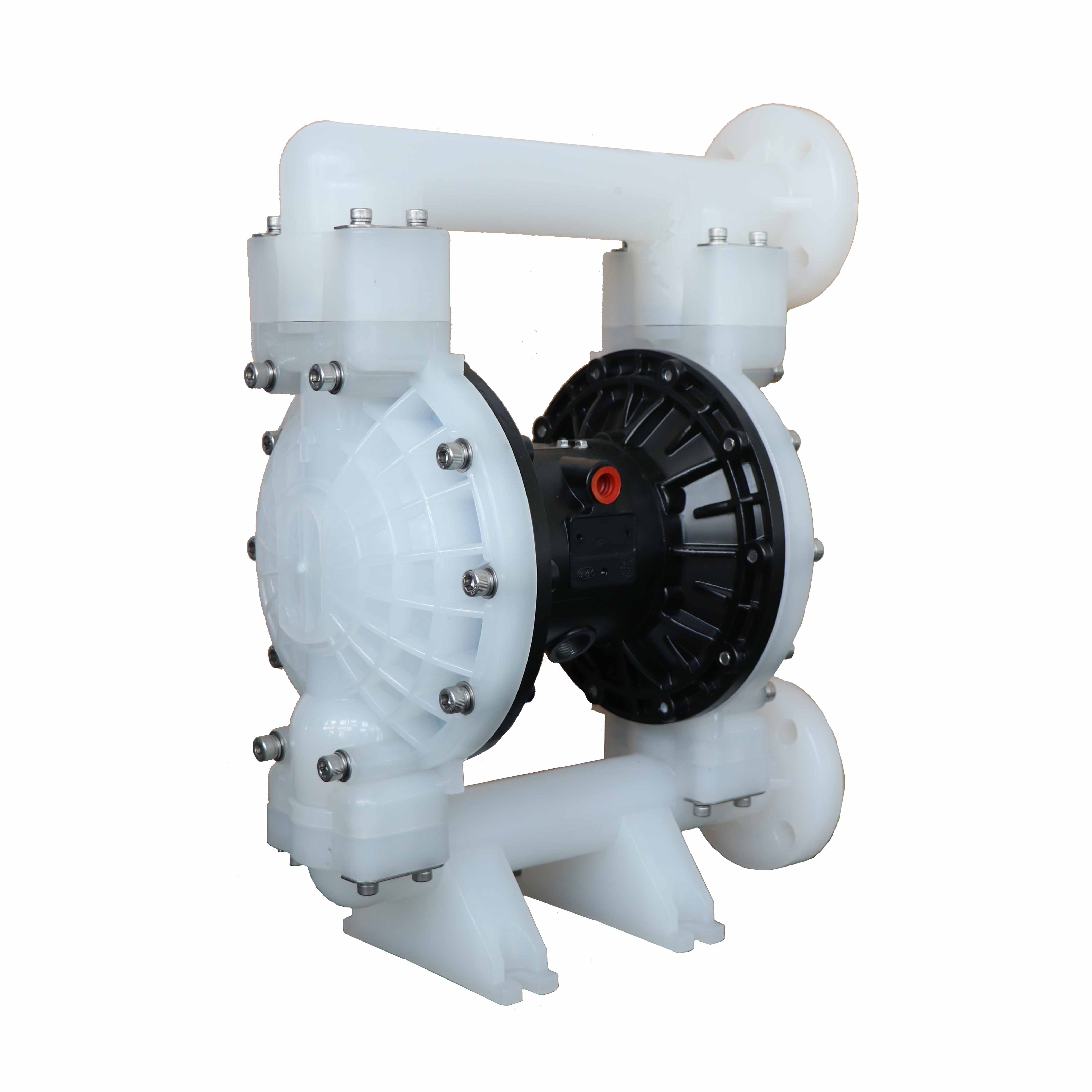

40PP法兰

Wetted Parts Material: PP/PVDF/Aluminum/Stainless Steel /Ductile Iton

Features:
• 1-1/2 in (38.1 mm) end-porting
• High flow – 100 gpm (378 lpm) in a compact, portable size
• Fluid pressure to 120 psi (8.4 bar, 0.84 MPa)
• Patented, high-reliability closed center air valve is online serviceable
• Lube-free operation
• Epoxy-coated air section
• External controller for optional remote operation


Applications:
• Machine lubrication servicing
• Drum evacuation
• Plating and dip tanks
• Water treatment


Typical Fluids Handled:
• Chemicals
• Acetic acid
• Chromic acid
• Hydrochloric acid
• Hydrofluoric acid
• Sulfuric acid
• Nitric acid
• Phosphoric acid


Technical Specifications:

Max Working Pressure 120psi(0.84Mpa ,8.4bar)
Max Flow Rate 118 gpm(446 lpm)
Max Reciprocating Speed 200cpm
Max Suction Height (Dry Sucking) 5m
Max Permitted Grain 5mm
Max.Air Consumption 80scfm(40L/s)
Air Inlet size 1/2 in.npt(f)
Air Outlet size 1/2 in.npt(f)
Fluid Inlet size 11/2 in.npt(f)
Fluid Outlet size 11/2 in.npt(f)
Weight

PVDF Pump 20g/PP pump 16kg

Aluminum pump16kg; Stainless Steel 29kg

Ductile Iton 33kg
