JMA Digital Metering Pump

  • JMA
  • LIGAO
  • 7.5-200L/H
  • 3-12 bars
Availability:
Quantity:

Product Description

7

JMA-PVDF-1_副本

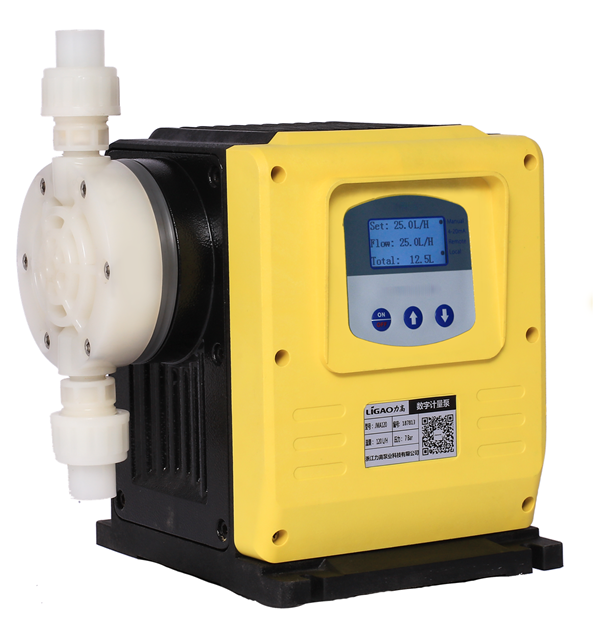

JMA serial digital metering pumps-the best choice for accurate metering

JMA serial digital metering pumps provide customers with intelligent solutions for accurate chemical dosing. The digital metering pump has a simple mechanical structure, convenient installation and maintenance, and a unique drive design, which makes the flow control simple and accurate. The pump integrates a variety of intelligent functions, such as flow, level, pressure, timer and others. Through the integrated microprocessor for automatic calculation and feedback, and the friendly touch-type human-machine interface system , it makes the operation more convenient.

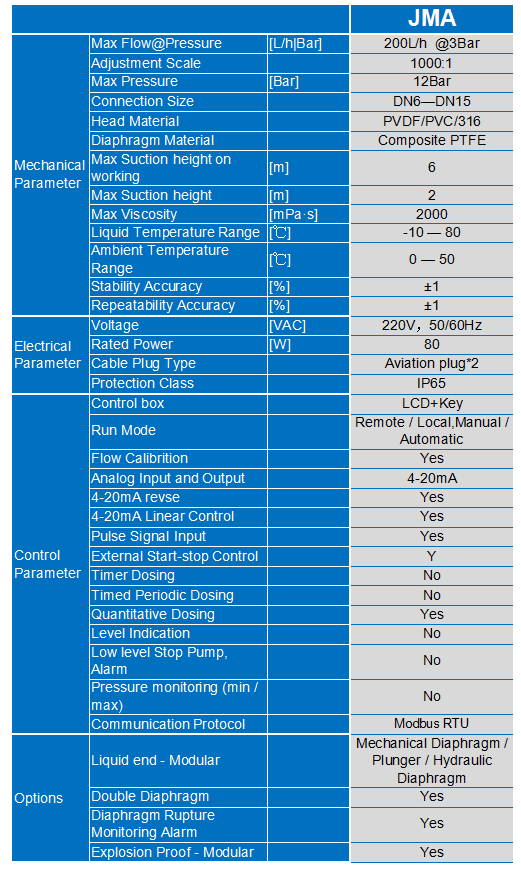

Parameter & Technical Characteristics

Model

Flow

(L/h)

Pressure
(Bar)

Diaphragm
(mm)

Power
(W)

Connection

PVDF

SS316

JMA7.5/1.2

7.5

12

60

80

6*9mm
PE hose

8*14mm
Union

JMA15/1.0

15

10

JMA25/1.0

25

JMA50/1.0

50

Rc1/2"
F Thread

JMA80/0.7

80

7

84

10*16mm
Union

JMA100/0.7

100

JMA120/0.7

120

JMA150/0.5

150

5

JMA200/0.3 200 3



  •  Simple structure, precise and reliable

  •  Material:PVDF/316

  •  Wide range adjustment, high linear accuracy

  •  Repeatability accuracy up to ± 1%

  •  Analog signal 4-20mA input and output

  • Pulse signal range: 999:1 - 1:999

  • External start-stop control

  • Timing dosing control

  •  quantitative dosing control

  •  4-20mA reverse control

  •  Easy operation

  • Diversified universal serial ports

JMA200
