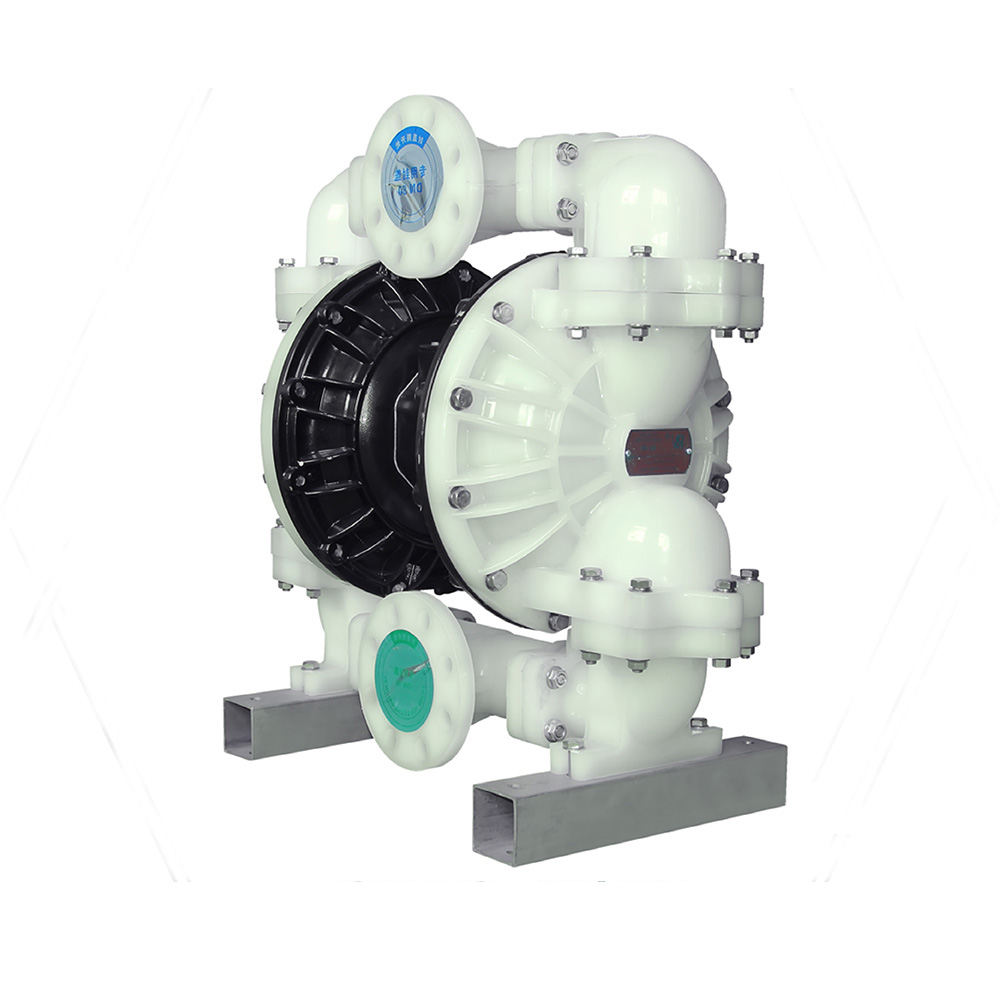

JQ80 Air Diaphragm Pump

  • JQ80

Product Description



Wetted Parts Material: PP/Aluminum/Stainless Steel /Ductile Iton

• 3 in (76.2 mm) ANSI center-porting that is internally threaded 3 npt or bspt
• Bolted leak-free, flanged connections — no clamp bands used
• Large flow paths for high viscosities
• Easy air valve maintenance
• Heavy-duty construction
• Fluid flow up to 275 gpm (1040 lpm)

• Chemical transfers
• Filter press-feed
• Dewatering

Typical Fluids Handled:
• Chemicals
• Bulk paint resins
• Ceramic slip

Technical Specifications:

Max Working Pressure 120psi(0.84Mpa ,8.4bar)
Max Flow Rate 275 gpm(1041 lpm)
Max Reciprocating Speed 135cpm
Max Suction Height (Dry Sucking) 5m
Max Permitted Grain 9.4mm
Max.Air Consumption 180scfm(90L/s)
Air Inlet size 3/4 in.npt(f)
Air Outlet size 1in.npt(f)
Fluid Inlet size 3 in.npt(f)
Fluid Outlet size 3 in.npt(f)

PP pump 66kg

Aluminum pump77kg

Stainless Steel 110kg

Ductile Iton 180kg
