Product Description
JPR series positive displacement plunger dosing pumps are high pressure pumps with high accuracy performance within ± 1%. The motor can be both vertically and horizontally mounted. Multiplex gear boxes with one motor drive and pump base is available.
Features:
Flow rate can be adjusted via unique adjusting mechanism from 0-100%;
The adjustment can be carried when pump is in operation or at stop;
The steady accuracy is ±1% from 30%-100% of the maximum output;
Automatic operation is achieved by variable speed drive;
Special application for high temperature or low temperature is available with cooling jacket or heating jacket;
Materials:
Pump head: SS304,SS316;
Pump case: Cast Iron;
Plunger: Ceramic or SS316 coated with ceramic;
Packing seal: PTFE and SS316 Ring;
Valves: SS304,SS316;
Valve Ball: SS304,SS316, Ceramic;
Power Supply:
Power: 1.5kw IEC90 4 pole Motor
380V 3 phase on standard or other voltage on request; EX-proof motor is available on request.

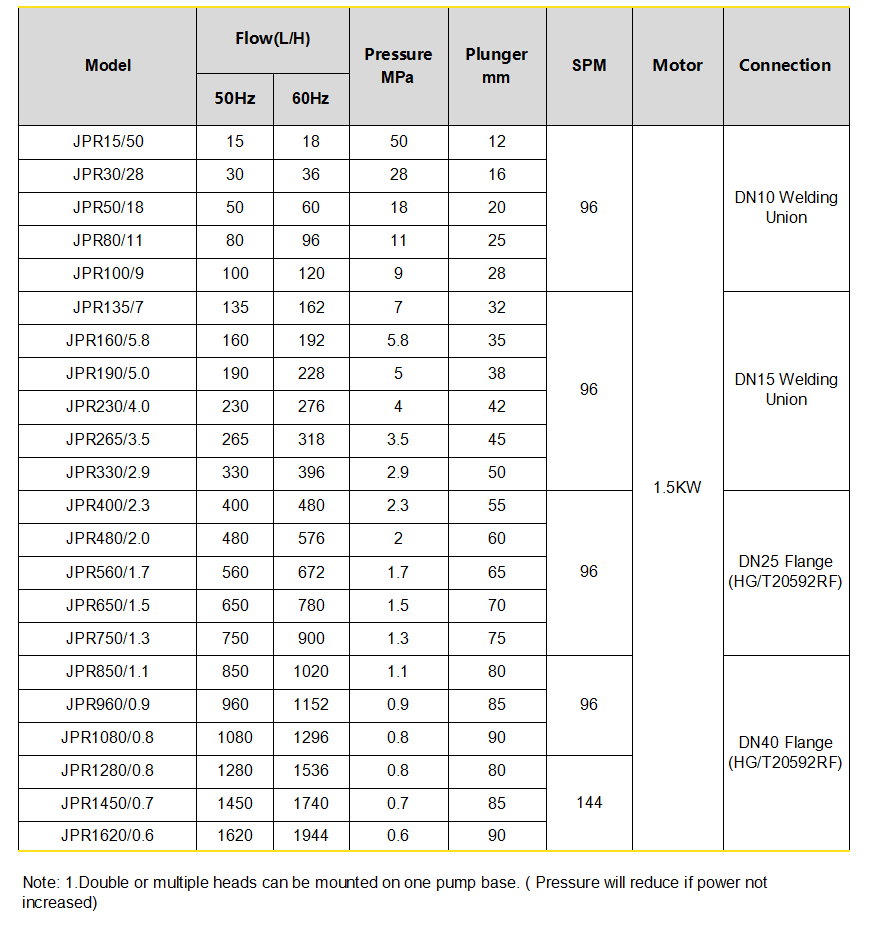

Parameter:
