Product Description

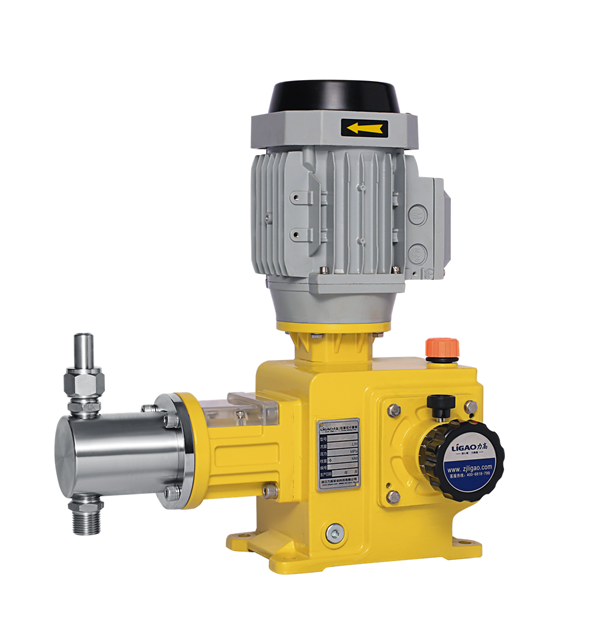

JPX series are plunger/piston type positive displacement, reciprocating metering pumps with high performance and accuracy dosing features. The plunger makes harmonic push and pull motion by the crankshaft. It is widely used in industries such as oil and gas, chemical or petrochemical, foaming, electricity, boiler, etc.
Features:
Flow rate can be adjusted via unique adjusting mechanism from 0-100%;
The adjustment can be carried when pump is in operation or at stop;
The steady accuracy is ±1% from 30%-100% of the maximum output;
Automatic operation is achieved by variable speed drive;
Special application for high temperature or low temperature is available with cooling jacket or heating jacket;
Materials:
Pump head: SS304,SS316;
Pump case: Cast Iron;
Plunger: Ceramic or SS316 coated with ceramic;
Packing seal: PTFE and SS316 Ring;
Valves: SS304,SS316;
Valve Ball: SS304,SS316, Ceramic;
Power Supply:
Power: 0.37kw IEC71 4 pole Motor
380V 3 phase on standard, single phase or other voltage on request; EX-proof motor is available on request.
Parameter:
