JBB Diaphragm Metering Pump

  • JBB

  • LIGAO

  • 15-150 L/H

  • 3-10 Bars

Availability:
Quantity:

Product Description

3

力高泵业产品图 (46)

Spring Return Diaphragm Metering Pump

 JBB series mechanical diaphragm metering pumps are spring type pumps with micro motor and reducer. It is robust and oil-free design. The rated power is only 60W, while the max pressure can be up to 10 bars, and max capacity can be up to 150lph. It is an ideal metering pump for all chemical dosing applications. It is widely used in water treatment application, such as acid, chroline, Sodium hydroxide and so on.


Features:

  • Robust and simple design with flow up to 150lph;

  • Connection is flexible for both union or PE hose;

  • Motor can both AC or DC powered;

  • Different materials for wetted parts options;

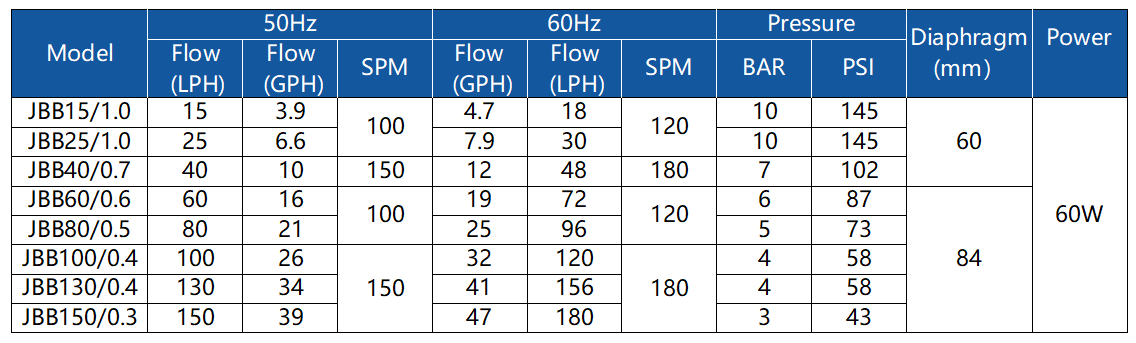

Parameter:

JBB参数

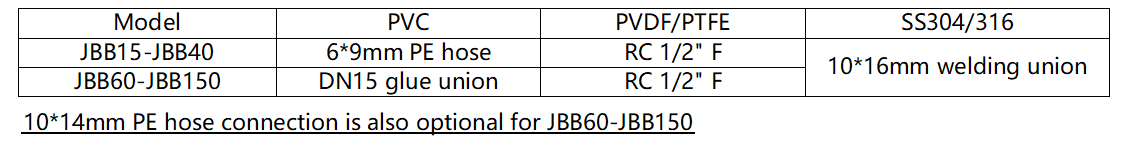

Connection:

JBB接头
