Product Description

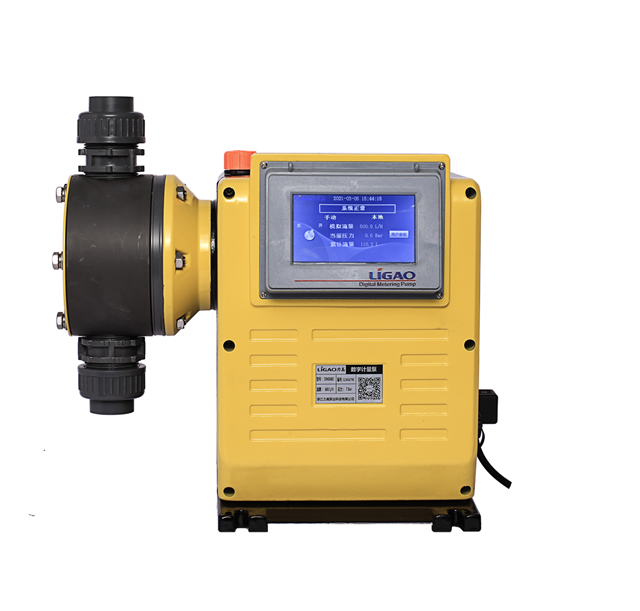

DMB series digital metering pump its digital control software and hardware adopts modular design, can be applied to the full series of mechanical diaphragm plunger hydraulic diaphragm metering pump products, and can meet the requirements of explosion-proof its mechanical structure is simple, convenient installation and maintenance, integration of a variety of intelligent design in one, a wide range of application JM series metering pump adopts large screen HD backlight LCD with key operation,DM series adopts touch HMI, the operation is more convenient, and on the basis of JM series can realize pressure level monitoring and alarm, can also realize the mode of timing cycle and other high-precision metering.
Parameter:
| Model | Flow (L/h) | Pressure (Mpa) | Diaphragm (mm) | Power (Kw) | Connection | ||
| PVC | PVDF/PTFE* | 304/316 | |||||
| DMB170/0.7 | 170 | 0.7 | 112 | 0.4 | DN15 union | Rc3/4”F Thread | 15x22 union for welding |
| DMB240/0.5 | 240 | 0.5 | |||||
| DMB330/0.5 | 330 | 0.5 | |||||
| DMB400/0.5 | 400 | 0.5 | DN20 union | ||||
| DMB500/0.5 | 500 | 0.5 | |||||
| DMB600/0.4 | 600 | 0.4 | DN25 union | Rc1”F Thread | Rc1" F Thread | ||
*PTFE is optional.
