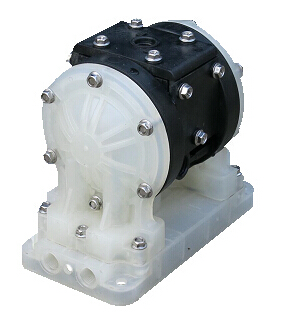

JQ06 Air Diaphragm Pump

  • JQ06

  • LIGAO

Availability:
Quantity:

Product Description

6

061

Wetted Parts Material: PP/PVDF

Features:
1/4 in (6.35 mm) end-porting

• No seals to leak or fail
• Quiet running — less than 85 dB with easy-to-use remote muffler capability for even lower noise levels
• High flow rates in a small, portable package
• External controller for optional remote operation


Applications:
• Machine lubrication servicing
• Drum evacuation
• Plating and dip tanks
• Water treatment


Typical Fluids Handled:
• Cleaning fluids and detergents
• Chemicals
• Ceramic glazes
• Inks
• Solvents and flammables
• Acids and bases


Technical Specifications:

Max Working Pressure 100psi(0.7Mpa ,7bar)
Max Flow Rate 4.5gpm(17lpm)
Max Reciprocating Speed Dry running320cpm; Wet running250cpm
Max Suction Height (Dry Sucking) 3m
Max Permitted Grain 1.5mm
Max.Air Consumption 7.0scfm(3.5L/s
Air Inlet size 1/4in.(f)
Air Outlet size 1/4in.(f)
Fluid Inlet size 1/4in.(f)
Fluid Outlet size 1/4in.(f)
Weight

 PP pump 1.1kg
