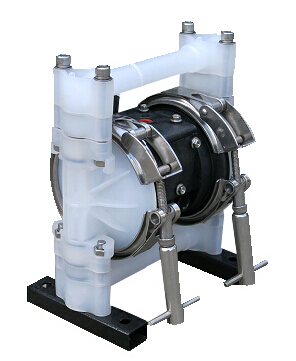

JQ10 Air Diaphragm Pump

  • JQ10
  • LIGAO
Quantity:

Product Description

6

10

Wetted Parts Material: PP/Aluminum

Features:
3/8 in (9.52 mm)  center- and end-porting
• No seals to leak or fail
• Quiet running — less than 85 dB with easy-to-use remote muffler capability for even lower noise levels
• High flow rates in a small, portable package
• External controller for optional remote operation


Applications:
• Machine lubrication servicing
• Drum evacuation
• Plating and dip tanks
• Water treatment


Typical Fluids Handled:
• Cleaning fluids and detergents
• Chemicals
• Ceramic glazes
• Inks
• Solvents and flammables
• Acids and bases


Technical Specifications:

Max Working Pressure 100psi(0.7Mpa ,7bar)
Max Flow Rate 10.5gpm(38lpm)
Max Reciprocating Speed 330cpm
Max Suction Height (Dry Sucking) Dry3.7m; Wet6.4m
Max Permitted Grain 1/16in.(1.6mm)
Max.Air Consumption 18scfm(9L/s)
Air Inlet size 1/4in.npt(f)
Air Outlet size 1/4in.npt(f)
Fluid Inlet size 3/8in.npt(f)
Fluid Outlet size 3/8in.npt(f)
Weight

 PP pump 2.5kg/Aluminum pump 3.9kg
